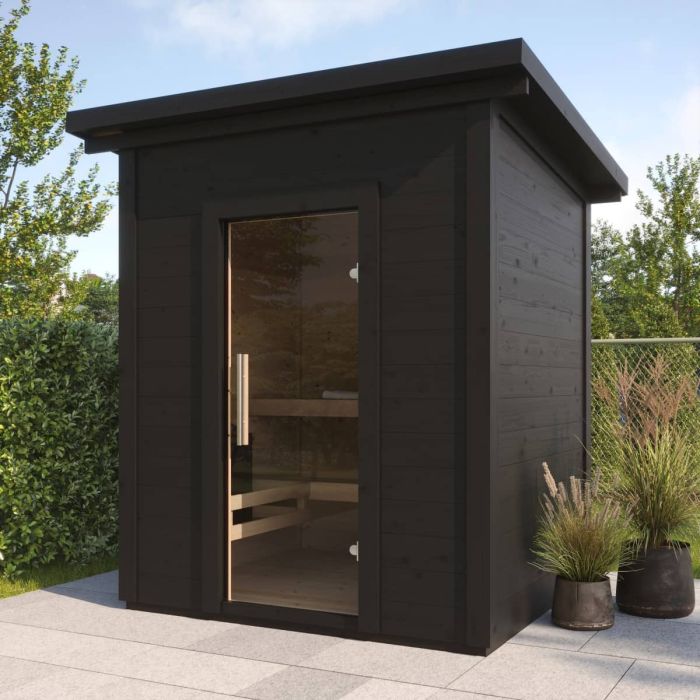

OUTDOOR SAUNA RELAXMINI 180

OUTDOOR SAUNA SPECIFICATIONS:

WALLS: 40 mm spruce logs, untreated

GROUNDFRAME: impregnated base frame

ROOF: Roof panels 24 mm, EPDM (including glue), metal edge covers

SAUNA: Sauna ceiling lining + PIR sauna insulation 30 mm.

Gutter: Waste water gutter included

DOOR: Full Glass door (690x1870mm), bronze, tempered 8 mm.

WINDOWS: Tempered glass 8 mm in wooden frame, bronze

In addition to the walls and roof, the standard scope of delivery always includes the floor, the glass and glass door belonging to the chosen model, an end plate and foil for the roof, and supply and return air grilles.

Quality

Due to our many years of experience in the sauna industry, we supply quality products at an extremely competitive price. This garden sauna is made by the best specialists at Arctic Saunas. Only specially selected Scandinavian quality woods are used.

Wood types

For the garden sauna itself, you have a choice of two types of wood. Each with their own unmistakable characteristics and advantages!

Spruce: (lifespan 10-15 years / strength class 3 / low maintenance)

This type of wood is white, light and soft, making it versatile, functional and easy to maintain. Spruce can be coloured in almost any colour to match your garden landscape, which is not possible with thermowood or larch. Spruce is one of the strongest woods, strong, inflexible and durable. It is not inherently rot-resistant, so it needs regular treatment and sealing, but with proper care it will last a very long time.

Thermal wood: (service life 15-25 years / strength class 2 / low maintenance)

Thermowood is heat-treated wood that is darker than natural wood. It is also more resistant to weather and rot. Thermowood is produced in a multi-stage, chemical-free process at high temperatures. Thermowood is then much lighter than before. Thermal modification reduces the resin content by up to 90%. As a result, the wood no longer gives off resin, even at high temperatures. The insulating properties of the wood are improved and it becomes more durable and less susceptible to deformation by moisture, making it an ideal wood for outdoor use. Not all components can be heat treated. Basic profiles are treated. Components such as benches, floor grilles, windows, doors, door handles and panelling are unfortunately not possible. These components will warp.

Our stoves

Proven, tried and tested and most widely used oven:

Vanwege het volume is ons advies om een ​​9 kW / 380 volt oven te gebruiken.

Op aanvraag kan ook een 6 kW / 380 volt oven geleverd worden. Wij geven u hier graag uitleg over.

Design Tower 4.5 kW / 6 kW / 9kW - 380 volt with internal control (left)

• Sawo ARI3-45 / ARI3-60 / ARI3-90
• Power: 4.5 kW / 6 kW / 9 kW
• Connection: 380 volt three-phase current
• Operation: Internal control with 2 buttons 1. Temperature / 2. Time
• Oven dimensions: 275 x 925 x 275 mm (width / height / depth)

Cable and stones included

Harvia M3

Oven dimensions: 390x710x430 mm (width / height / depth)

1 metre chimney and stones included

Harvia PRO 20

Oven dimensions: 430x760x510 mm (width / height / depth)

1 metre chimney and stones included

Huum Heat 12 (rechts)

Oven dimensions: 450x750x490 mm (width / height / depth)

1 metre chimney and stones included

Electric 3.6 kW 230-volt sauna heater with internal controls for wall mounting (left)

- Narvi Minex

- Output: 3.6 kW

- Connection: 230 volt

- Operation: Internal control with 2 buttons 1. Temperature / 2. Time

- Dimensions stove: 330 mm x 630 mm x 200 mm (width / height / depth)

This heater is not offered because 3.6kW/230 volts would not be sufficient for this size. The volume of the cabin is too large.

Electric 4.5 kW / 6 kw / 9kW - 380 volt sauna heater with internal controls for wall mounting (centre)

• NARVI NM
• Output: 4.5 kW / 6 kW / 9 kW
• Connection: 380 volt
• Operation: Internal control with 2 buttons 1. Temperature / 2. Time
• Stove dimensions: 430 mm x 580 mm x 300 mm (width / height / depth)

Cable and stones included

Electric 4.5 kW / 6 kw / 9kW - 380 volt sauna heater with internal controls for mounting in the heater rack (right)

Corresponds to the wall-mounted heater. Only a kacherek is supplied and the heater is mounted in the heater rack.

• NARVI NM
• Power output: 4.5 kW / 6 kW / 9 kW
• Connection: 380 volt three-phase current
• Operation: Internal control with 2 buttons 1. Temperature / 2. Time
• Oven dimensions: 430 mm x 580 mm x 300 mm (width / height / depth)
• Dimensions frame: 630 mm x 555 mm (+ 4 adjustable feet approx. 65 mm long) x 405 mm (width / height / depth)

Stove rack, cable and stones included

Comfort

Arctic outdoor saunas are higher than 200 cm, allowing you to stand upright in the sauna. In addition, this manufacturer uses extra-wide sauna benches with a width of 60 cm, which greatly increase sitting and lying comfort. Visit us and learn the difference between a 50 cm and a 60 cm deep bench.

Enjoy

Imagine: A barrel sauna in your own garden! After a busy day, you can relax in your own garden. Possibly in combination with a wood-fired whirlpool from SuperSauna.

Infrared in the outdoor sauna

With infrared, you can choose from single radiant heaters to fully configured sets.

Find out more about infrared in the outdoor sauna here.
